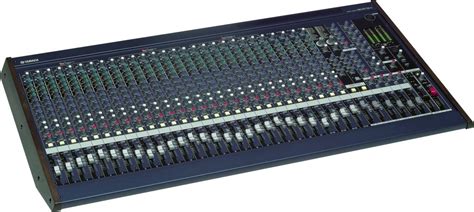

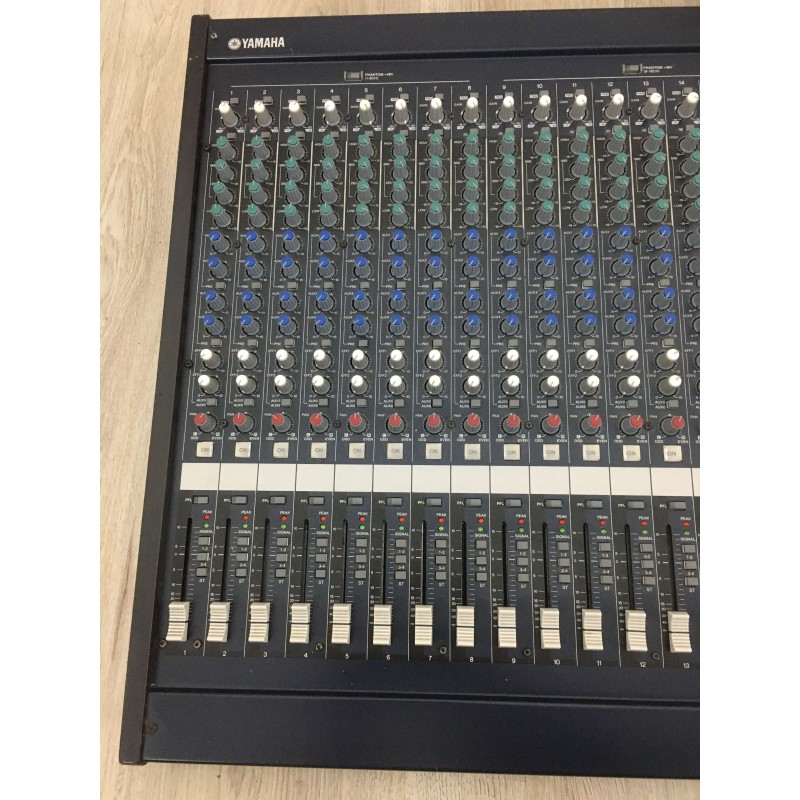

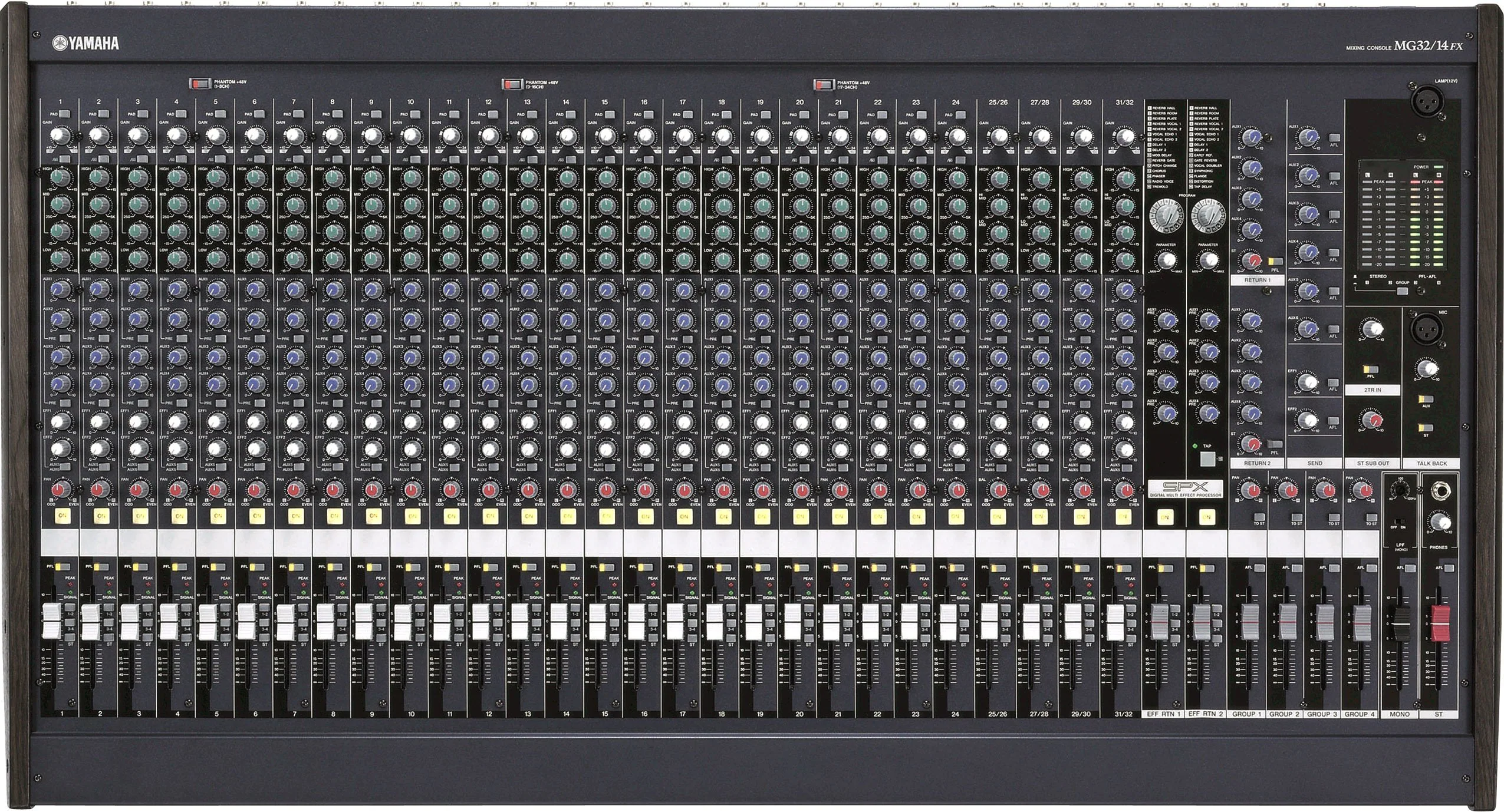

Yamaha MG32/FX Mixing Console

Total Channels: 32 inputs (24 mono + 4 stereo)
Group Buses: 4 group buses + stereo bus
Auxiliary Sends: 6 aux sends + 2 dedicated effect sends
Subgroups: 4 stereo group outputs for flexible routing

Description

Mic Inputs: 24 mono channels with XLR connectors and phantom power (+48V, switchable per 8 channels)
Line Inputs: 4 stereo channels with 1/4″ jacks
Insert Points: Available on all mono channels and group/stereo buses
Talkback Input: XLR input for communication to aux or group buses
Main Outputs: Balanced XLR for stereo and mono outputs
- Aux & Group Outputs: Balanced TRS jacks
EQ & Processing
- Mono Channels: 3-band EQ with sweepable mids and high-pass filter
- Stereo Channels: 4-band EQ (high, hi-mid, low-mid, low)

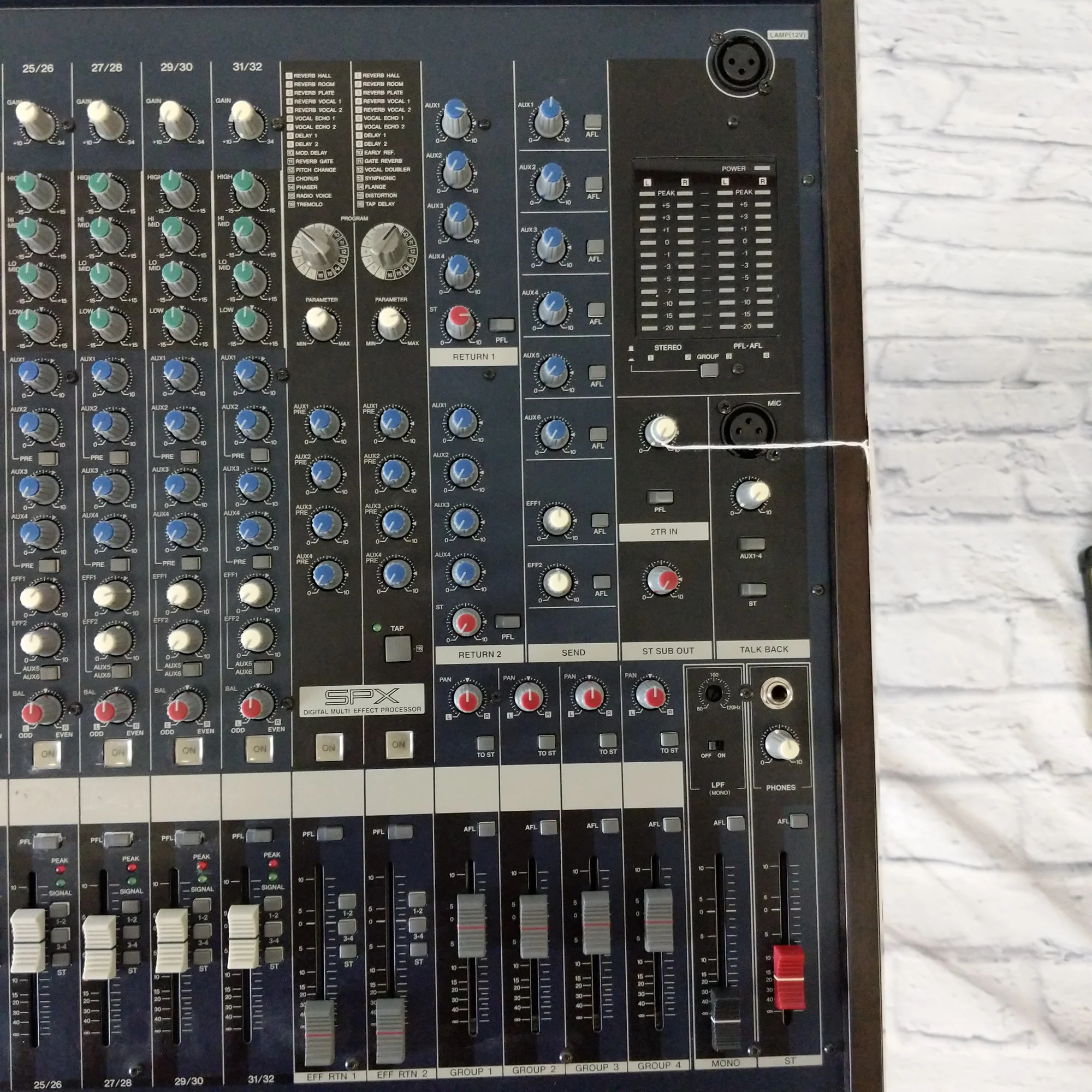

- Built-in Effects: Dual Yamaha SPX digital multi-effects processors with reverb, delay, chorus, flanger, and more
Performance Specs
- Frequency Response: 20Hz–20kHz (+1/-3dB) at +4dB output
- Total Harmonic Distortion (THD): Less than 0.1% at +14dB
- Noise Level: Equivalent input noise at -128dBu; residual output noise at -99dBu
- Crosstalk: Low interference between channels for clean signal separation
- ⚙️ Physical & Power
  - Dimensions: Approx. 852 x 540 x 150 mm
  - Weight: Around 22 kg
  - Power Supply: 230V AC, 50Hz
  - Footswitch Control: Available for effects bypass
