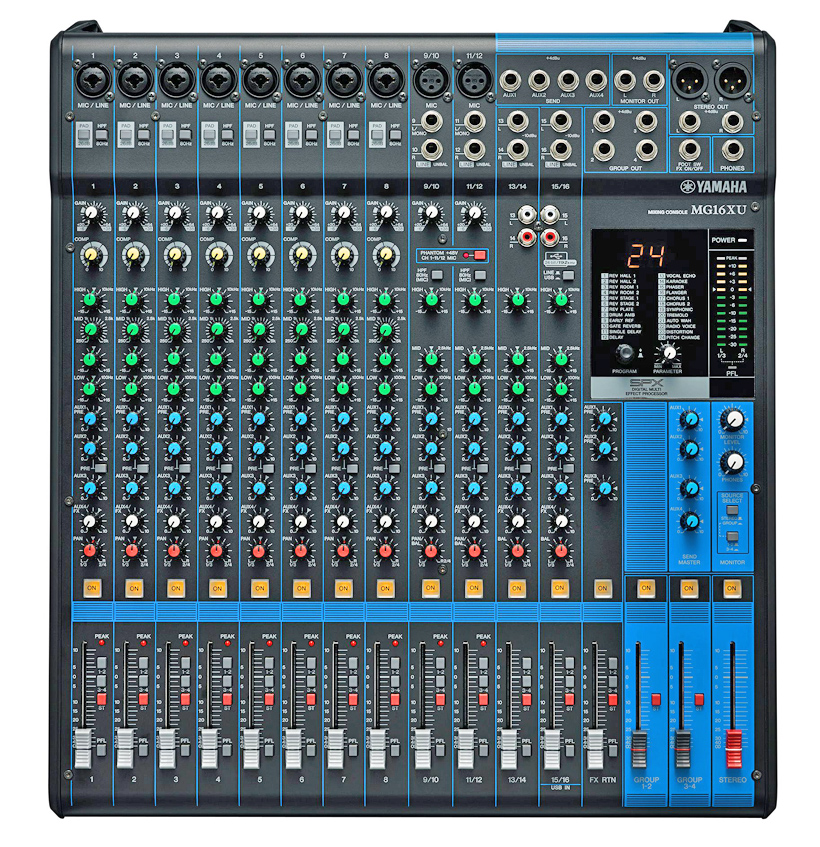

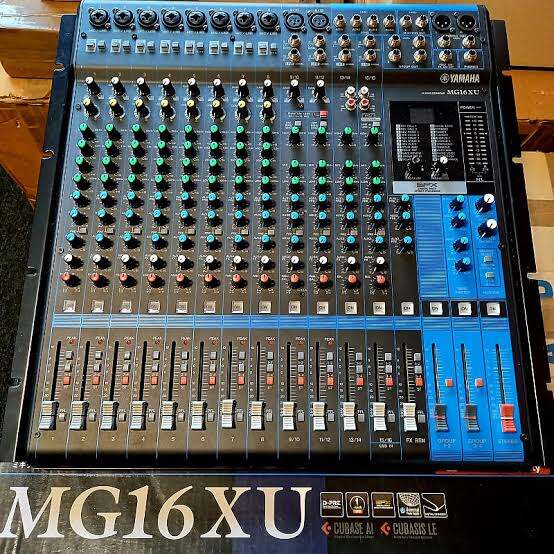

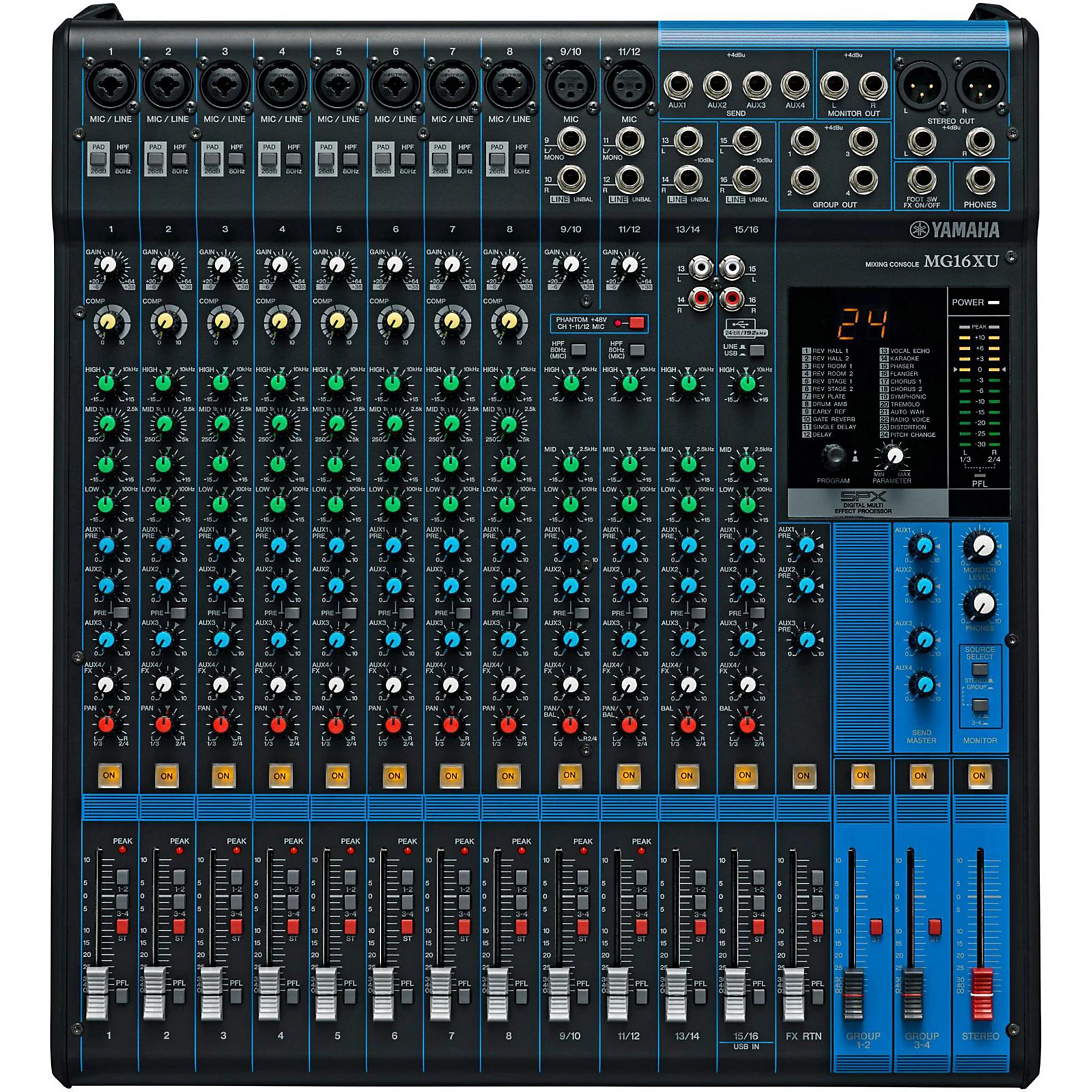

Yamaha MG16XU Mixing Console

Total Channels: 16 (8 mono + 4 stereo)
Mic Inputs: 10 XLR inputs with phantom power (+48V)
Line Inputs: 16 total (8 mono + 4 stereo pairs)
USB Interface: 2-in/2-out for direct recording and playback with a computer

Description

Preamps: Yamaha’s discrete Class-A D-PRE mic preamps for clean, natural sound
EQ: 3-band EQ on all mono channels with high-pass filter
Compression: 1-knob compressors on 8 mono channels
Aux Sends: 4 aux sends (2 for effects, 2 for monitors)
Main Outputs: Balanced XLR and TRS
Group Outputs: 4 group buses with dedicated outputs
- Headphone Output: With level control
Built-in Effects
- SPX Digital Multi-Effects Processor: Includes 24 presets like reverb, delay, chorus, flanger, phaser, distortion, pitch change, and more
- Footswitch Control: Optional footswitch for effect bypass
USB Audio Interface
- Compatibility: Works with Windows and macOS
- Sample Rate: 24-bit / 192kHz
- Recording Software: Compatible with DAWs like Cubase, Logic, and Ableton
- Physical Specs
  - Dimensions: 444 x 130 x 500 mm
  - Weight: 6.6 kg
  - Power Supply: External AC adapter (PA-30)
