Yamaha MG24/FX Mixer

Description

️ Channel Configuration

• Total Channels: 24 input channels (16 mono + 4 stereo)
• Group Buses: 4
• Auxiliary Sends: 8 (including 2 switchable pre/post fader)
• Main Outputs: Stereo and Mono

️ Input & Output Capabilities

• Mic Inputs: 16 mono channels with XLR connectors and phantom power (+48V, switchable per 8 channels)
• • Line Inputs: 4 stereo channels with 1/4″ jacks
  • Insert Points: Available on mono channels for external processing
  • Talkback Input: Unbalanced XLR3 for communication to aux sends
  • Main Outputs: Balanced XLR for stereo and mono outputs
  • Aux & Group Outputs: Balanced TRS jacks

  EQ & Processing

  • Mono Channels: 3-band EQ with sweepable mids and high-pass filter
  • Stereo Channels: 4-band EQ
  • Built-in Effects: Dual SPX digital multi-effects processors for reverb, delay, chorus, and more
  • Today
    yamaha mg24

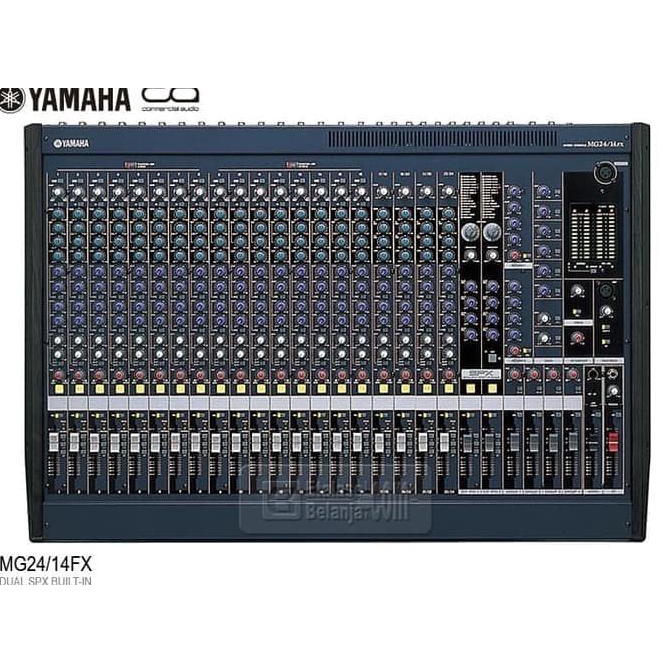

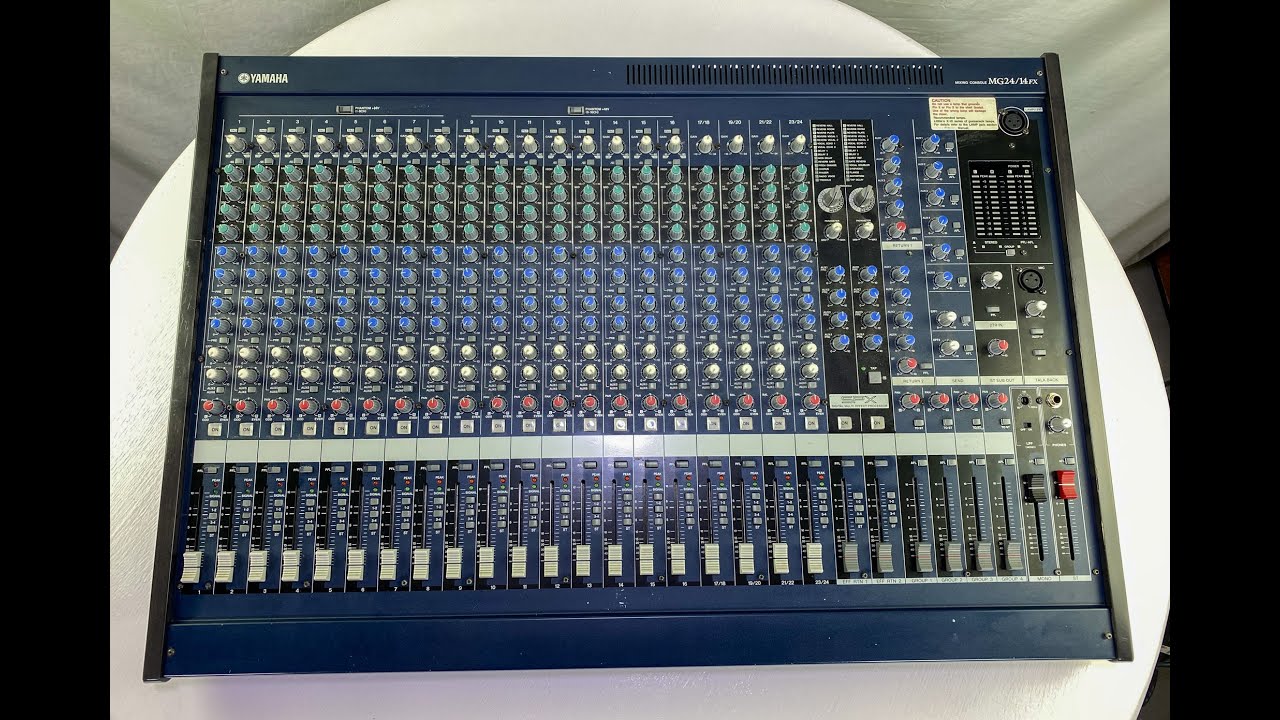

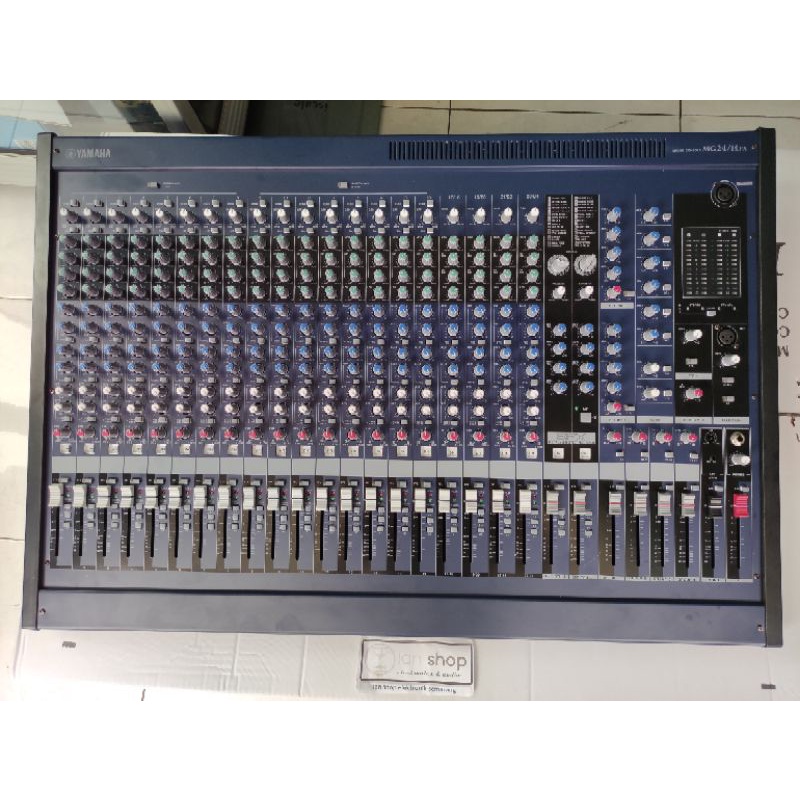

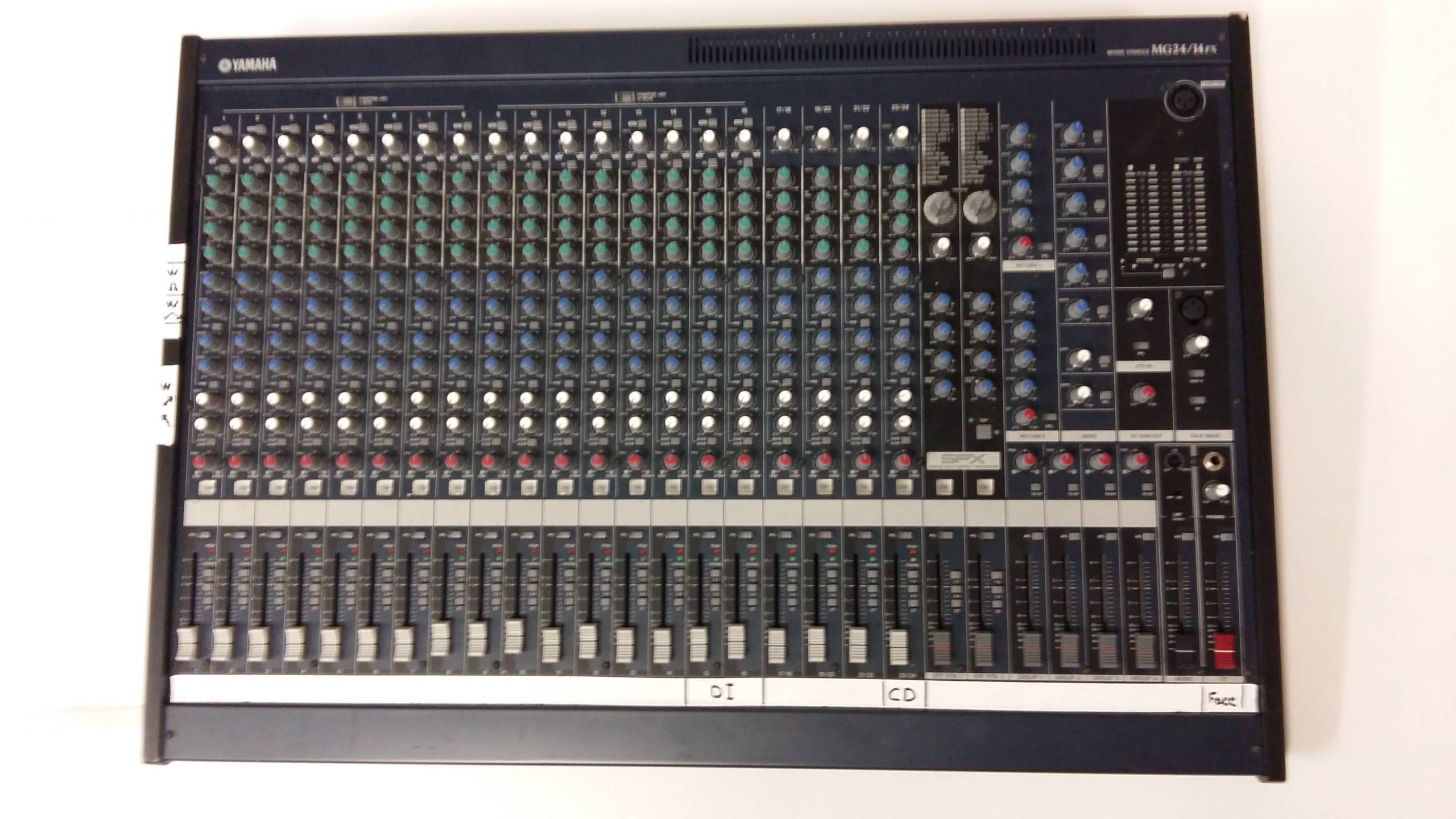

    The Yamaha MG24/14FX is a versatile 24-channel mixing console designed for live sound and recording applications, featuring built-in effects and flexible routing options.

    Here’s a detailed breakdown of its key features and specifications:

    ️ Channel Configuration

    • Total Channels: 24 input channels (16 mono + 4 stereo)
    • Group Buses: 4
    • Auxiliary Sends: 8 (including 2 switchable pre/post fader)
    • Main Outputs: Stereo and Mono

    ️ Input & Output Capabilities

    • Mic Inputs: 16 mono channels with XLR connectors and phantom power (+48V, switchable per 8 channels)
    • Line Inputs: 4 stereo channels with 1/4″ jacks
    • Insert Points: Available on mono channels for external processing
    • Talkback Input: Unbalanced XLR3 for communication to aux sends
    • Main Outputs: Balanced XLR for stereo and mono outputs
    • Aux & Group Outputs: Balanced TRS jacks

    EQ & Processing

    • Mono Channels: 3-band EQ with sweepable mids and high-pass filter
    • Stereo Channels: 4-band EQ
    • Built-in Effects: Dual SPX digital multi-effects processors for reverb, delay, chorus, and more

    Performance Specs

    • Frequency Response: 20Hz–20kHz (+1.0/-3dB)
    • Total Harmonic Distortion (THD): Less than 0.1% at +14dB
    • Noise Level: Equivalent input noise at -128dBu; residual output noise at -99dBu
    • Crosstalk: Low interference between channels

    ⚙️ Physical & Power

    • Dimensions: 852 x 540 x 150 mm
    • Weight: 21 kg
    • Power Supply: 230V AC, 50Hz
    • Footswitch Control: Available for effects bypass
