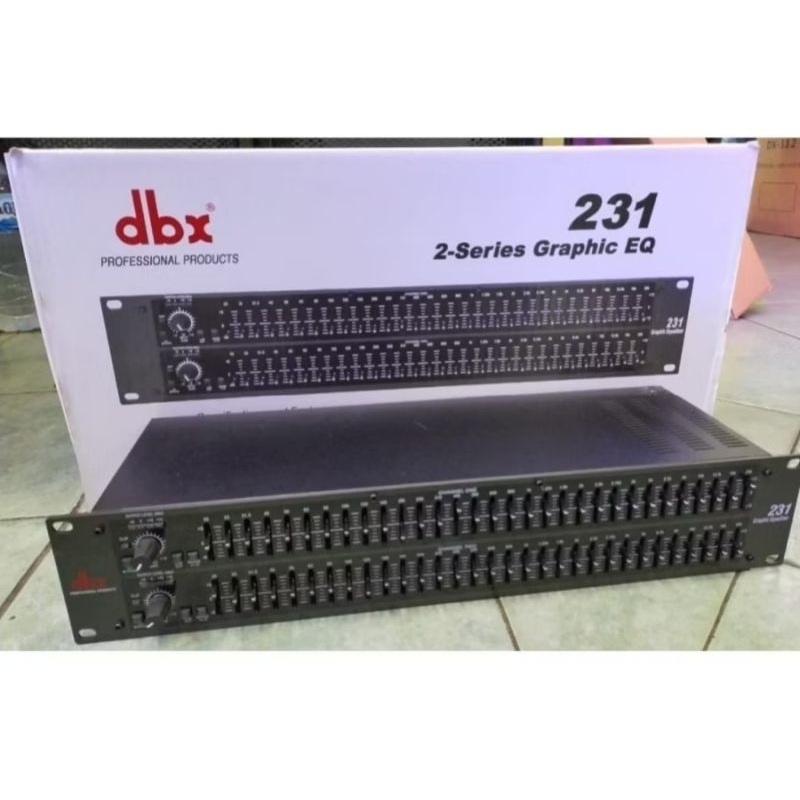

Dbx321 Graphics Equalizer

Description

️ Channel Configuration

• Dual Channel: Two independent channels for stereo or dual-mono operation
• Bands per Channel: 32 bands of 1/3-octave equalization
• Frequency Range: Covers 20Hz to 20kHz with 1/3-octave spacing

️ EQ Controls

• Boost/Cut Range: ±6 dB or ±12 dB (switchable)
• Sliders: 20mm nonconductive sliders for each band
• Input Gain: ±12 dB input gain control per channel

Performance Specs

• Frequency Response: 10Hz to 50kHz
• Dynamic Range: 108 dB
• • THD + Noise: Less than 0.003% at +4 dBu
  • Signal-to-Noise Ratio: Greater than 95 dB

  ⚙️ Build & Connectivity

  • Rack Mountable: Standard 19″ rack size, 2U height
  • Inputs/Outputs: Balanced XLR and TRS connectors
  • Bypass Switch: Allows quick comparison between processed and unprocessed signal
  • Output Level Metering: LED meters for visual monitoring

  ️ Applications

  • Ideal for:
    • Live sound reinforcement
    • Studio mixing
    • Broadcast environments
    • Fixed installations (churches, theaters, clubs)
