Description

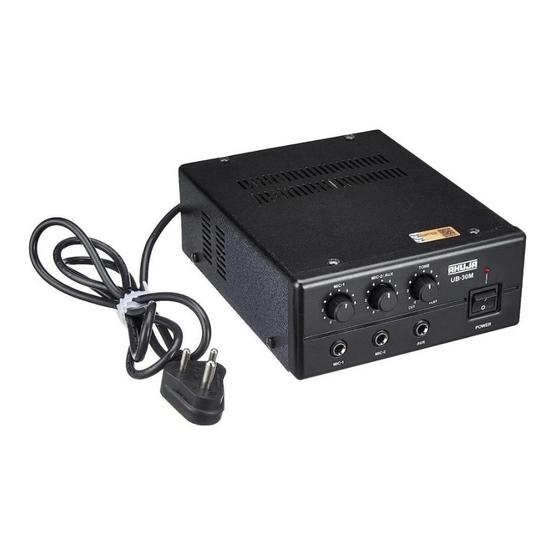

Ahuja UB-30 Mixer Amplifier is a compact 25W low-wattage PA (Public Address) mixer amplifier designed for small announcements, shops, classrooms, offices, prayer halls, and small meeting spaces.
Key Specifications
1. Output power: 30W RMS maximum (25W RMS at 10% THD)
2. Inputs:
2 × Microphone inputs (1.0mV / 4.7kΩ)
1 × Auxiliary input (100mV / 470kΩ)

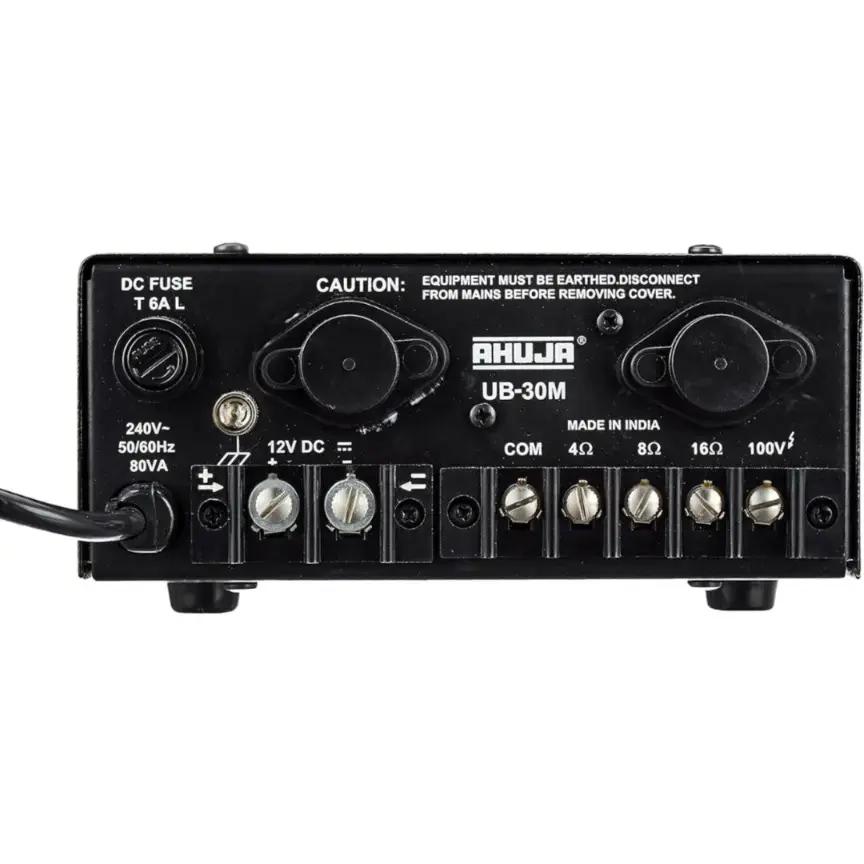

3. Speaker outputs: 4Ω, 8Ω, 16Ω and 100V line
4. Frequency response: 150Hz–10kHz ±3dB
5. Signal-to-noise ratio: 60dB
6. Power supply:
AC 220–240V, 50/60Hz
12V DC car battery operation
7. Dimensions: 180 × 80 × 260 mm
8. Weight: about 4 kg
Features
1. Dual power operation (mains + 12V battery)
2. Automatic changeover from AC to battery
3. Protection against incorrect battery polarity
4. Cut-type tone control
5. Two microphone channels plus AUX input
Suitable For
1. Small PA systems
2. School announcements
3. Shops and counters
4. Small religious gatherings
5. Voice paging systems
6. Small outdoor announcements
