Description

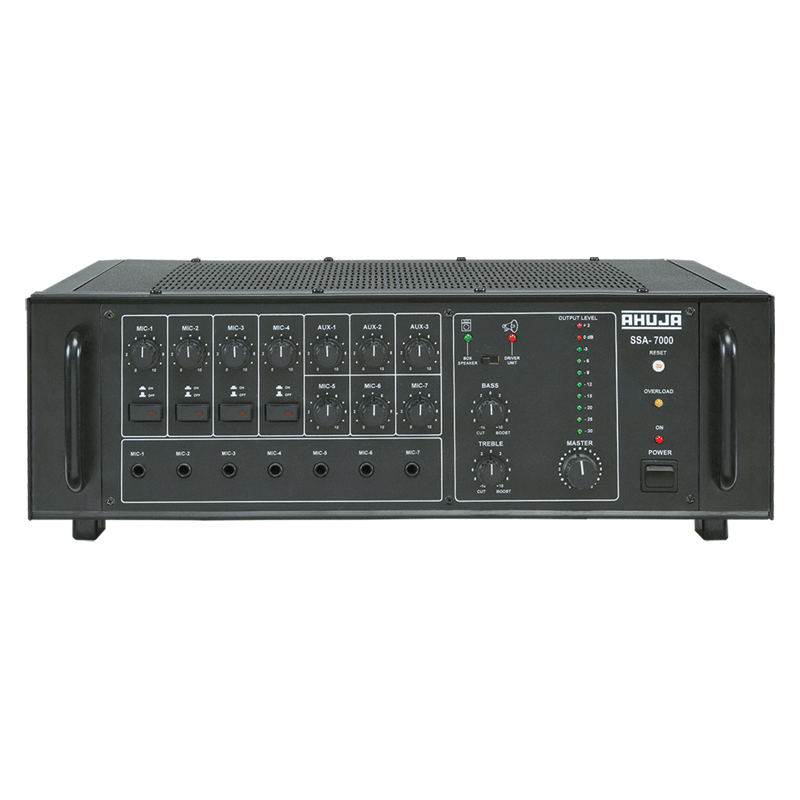

Ahuja SSA-7000 Mixer Amplifier is a high-power public address (PA) mixer amplifier designed for large installations such as auditoriums, schools, religious venues, factories, outdoor announcements, and commercial sound systems.
Key specifications
1. Rated output: 700 W RMS (10% THD)
600 W RMS at 5% THD
570 W RMS at 2% THD
950 W maximum output
2. Inputs:
7 × microphone inputs
2 × auxiliary inputs
Line input for external mixer/booster use
3. Speaker outputs: 2Ω, 4Ω, 70V, and 100V line outputs
4. Frequency response: 50 Hz–15 kHz (±3 dB)
5. Tone controls: Bass ±10 dB (100 Hz), Treble ±10 dB (10 kHz)
6. Power supply:
AC: 220–240 V, 50/60 Hz
DC backup: 36 V using three 12 V batteries
7. Dimensions: 510 × 185 × 400 mm
8. Weight: about 38 kg
Features
1. Built-in mixer section for multiple microphones and audio sources
2. Preamp and line outputs for expansion or recording
3. Overload and short-circuit protection
4. Automatic changeover to battery power during AC failure
5. Selectable operation for box speakers or driver units/horns
Typical uses
1. Mosque/church PA systems
2. School and college announcements
3. Factory and warehouse paging
4. Outdoor events
5. Large horn speaker installations
