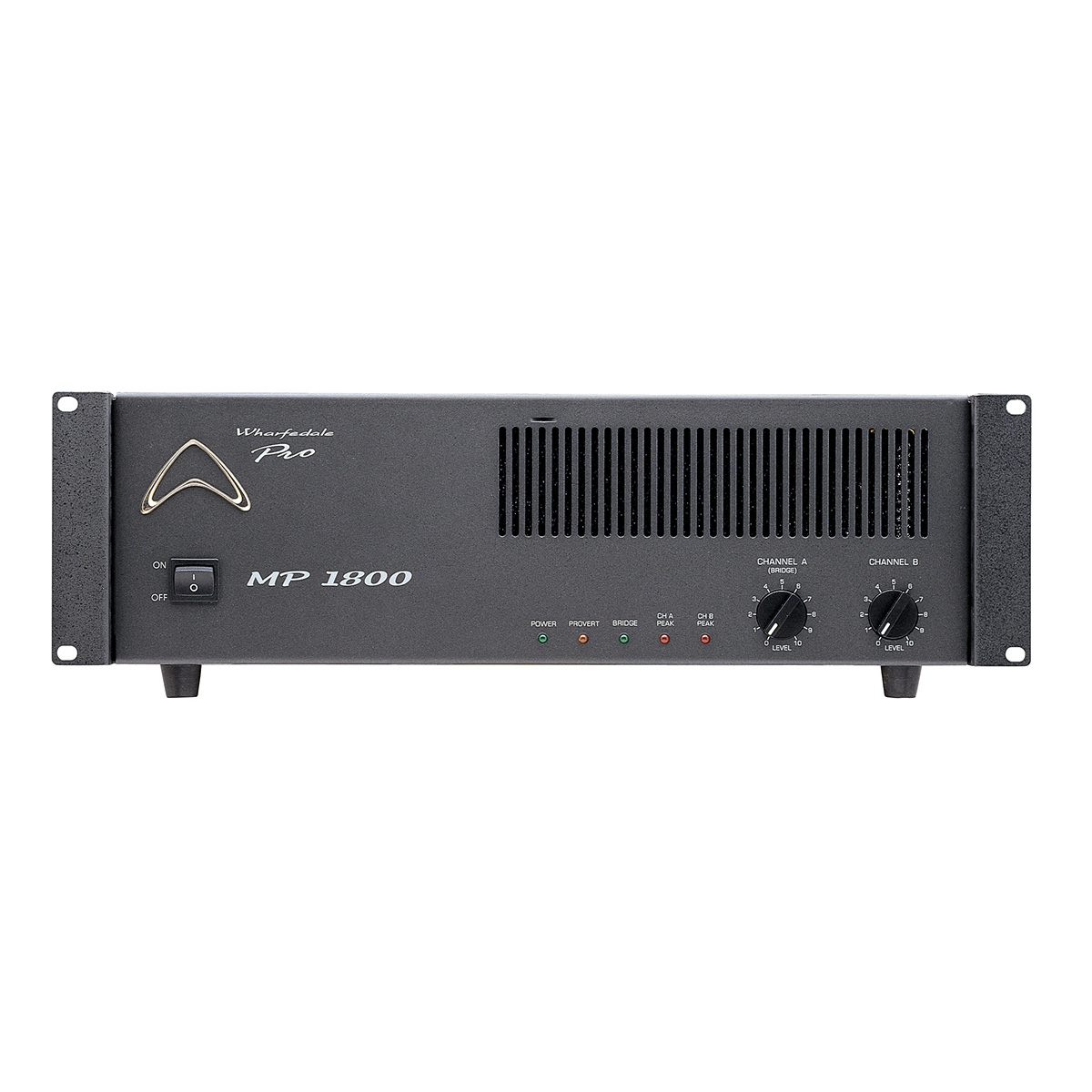

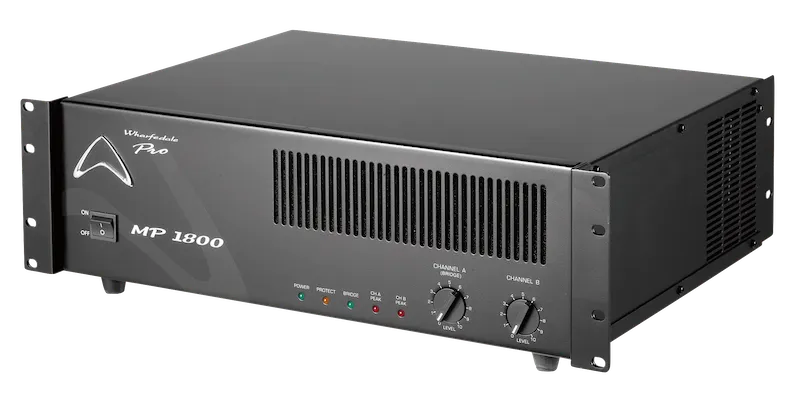

Wharfedale MP1800 Amplifier

Description

The Wharfedale MP1800 is a robust Class AB professional power amplifier designed for touring, rental, and installation setups, delivering up to 1800 watts in bridged mode.

Here’s a detailed breakdown of its specifications and features:

Power Output

• Stereo Mode:
  • 8 Ohms: 2 × 300 watts
  • 4 Ohms: 2 × 600 watts
  • 2 Ohms: 2 × 900 watts
• Bridged Mode:
  • 8 Ohms: 1 × 1200 watts
  • 4 Ohms: 1 × 1800 watts

  • Design & Technology

    • Topology: Class AB — known for sonic accuracy and reliability
    • Cooling: Continuously variable speed fan with copper-plated heatsinks for efficient heat dissipation
    • Construction: All-steel chassis for durability
    • Circuitry: Simple internal layout for easier maintenance and repair
    • New FRT Circuitry: Enhances response time and signal clarity

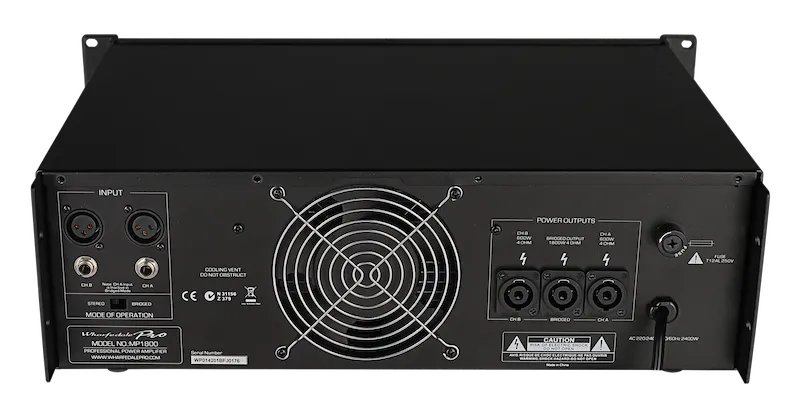

    ️ Connectivity & Controls

    • Inputs: 2 × XLR, 2 × 6.3mm jack
    • Outputs: 3 × Speakon-compatible and bare wire terminals
    • Modes: Stereo and Bridge
    • • Indicators: Peak and protect LEDs
      • Ground Lift Switch: Rear panel for noise control

      ️ Use Cases

      • Ideal for driving multiple loudspeakers
      • Stable operation down to 2 Ohms
      • Suitable for live sound, fixed installations, and mobile rigs
